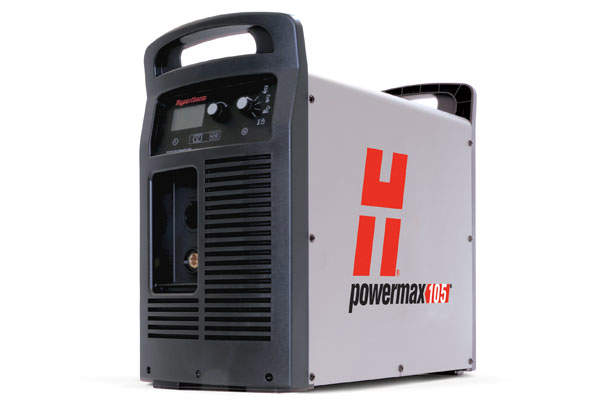

Powermax105 plasma cutter
The Powermax105® 105-amp plasma power supply will stop manufacturing in December 2021, and will no longer be available for sale from Hypertherm. We continue to make original replacement torches, consumables, and repair parts. Refer to the Torches and consumables section for additional upgrade options.
Hypertherm Technical Service department still supports this model.
System information
Product lifecycle
059390, 059391, 059392, 059430, 059431, 059432, 059433, 059393, 059410, 059411, 059412, 059370, 059371
Affected system part numbers:
059374, 059375, 059376, 059377, 059378, 059379, 059380, 059381, 059382, 059383, 059384, 059385, 059386, 059387, 059394, 059395, 059396, 059397, 059398, 059399, 059400, 059401, 059402, 059403, 059404, 059406, 059407, 059414, 059415, 059416, 059417, 059418, 059419, 059420, 059421, 059422, 059423, 059424, 059426, 059427, 059434, 059435, 059436, 059437, 059438, 059439, 059440, 059441, 059442, 059443, 059444, 059446, 059447, 059448, 059449, 059450, 059451, 059485, 059604, 059714
| AVAILABILITY | |
|---|---|
| Power supply | ⊗ |
| Original torch | ✔ |
| Service parts | ✔ |
| Consumables | ✔ |
| Technical support | ✔ |
Specifications
Cut capacity
| Capacity | Thickness | Cut speed |
|---|---|---|
|
Cutting |
||
| Recommended | 32 mm (1-1/4″) | 500 mm/min (20 ipm) |
| 38 mm (1-1/2″) | 250 mm/min (10 ipm) | |
| Severance (hand cutting) | 50 mm (2″) | 125 mm/min (5 ipm) |
| Pierce * | 22 mm (7/8″) | |
* Pierce rating for handheld use or with automatic torch height control.
| Capacity | Metal removal rate | Groove profile |
|---|---|---|
|
Gouging |
||
| Typical gouge | 9,8 kg/hr (21.7 lbs./hr) |
6,4 mm D x 7,4 mm W (0.25″ D x 0.29″ W) |
Production cut chart
| Material | Thickness | Current | Production cut speed * | ||
|---|---|---|---|---|---|
| inches | mm | amps | ipm | mm/min | |
| Mild steel | 1/4 | 6 | 105 | 192 | 5090 |
| 3/8 | 8 | 105 | 116 | 3870 | |
| 1/2 | 12 | 105 | 76 | 2060 | |
| 3/4 | 20 | 105 | 40 | 940 | |
| Stainless steel | 1/4 | 6 | 105 | 224 | 6000 |
| 3/8 | 8 | 105 | 112 | 4210 | |
| 1/2 | 12 | 105 | 68 | 1860 | |
| 3/4 | 20 | 105 | 34 | 810 | |
| Aluminum | 1/4 | 6 | 105 | 265 | 7090 |
| 1/2 | 12 | 105 | 91 | 2450 | |
| 3/4 | 20 | 105 | 50 | 1190 | |
*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum. For optimum cut quality, cutting speeds may vary based on different cutting applications. Refer to the operator manual for more details.
General specifications
| Input voltages | CSA | 200–600 V, 3-PH, 50/60 Hz |
|---|---|---|
| CE | 400 V, 3-PH, 50/60 Hz 200–400 V, 3-PH, 50/60 Hz |
|
| CCC | 380 V, 3-PH, 50/60 Hz | |
| Input current @ 16.8 kW | 200/208/240/380/400/480/600 V, 58/56/49/28/25/22 A | |
| Output current | 30–105 A | |
| Rated output voltage | 160 VDC | |
| Duty cycle @ 40° C (104° F) | 80% @ 105 A | |
| Open circuit voltage (OCV) |
|
|
| Dimensions with handles | 592 mm D; 274 mm W; 508 mm H (23.3″ D; 10.8″ W; 20.0″ H) | |
| Weight with 7.6 m (25') torch |
|
|
| Gas supply | Clean, dry, oil-free air or nitrogen | |
| Recommended gas inlet flow rate/pressure |
Cutting: 217 l/min (460 scfh) @ 5.9 bar (85 psi) Gouging: 227 l/min (480 scfh) @ 4.8 bar (70 psi) |
|
| Input power cable length | 3 m (10') * | |
| Power supply type | Inverter – IGBT | |
| Engine drive requirement | 30 kW for full 105 A output | |
| Certifications | CSA-certified for use in the Americas and Asia, except China. CE, C-Tick, CU/GOST, Ukr, and Serbian – for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted. CCC for use in China. |
|
| Warranty | Power supplies have a 3-year warranty and torches a 1-year warranty. | |
*No power cord on some CCC models.
Engine-driven generator operation
| Engine drive rating | System output current | Performance (arc stretch) |
|---|---|---|
| 30 kW | 105 A | Full |
| 22.5 kW | 105 A | Limited |
| 22.5 kW | 85 A | Full |
| 15 kW | 85 A | Limited |
| 15 kW | 65 A | Limited |
Upgrade to the new cartridge consumable platform!
The Hypertherm cartridge consumable platform is a revolutionary change to standard air plasma consumables. Each single-piece cartridge is optimized by process and amperage to ensure performance while dramatically simplifying the parts needed to cut or gouge with plasma.
Torch and cable options
Duramax torch options
(For Duramax Hyamp torch part numbers, including long torches, see the Powermax125®)
| Hand torches | Machine torches | Robotic torches | |||||
|---|---|---|---|---|---|---|---|
| Cable length | 75° | 15° | 180° | Mini 180° | 45° | 90° | 180° |
| 4,5 m (15′) | 059476 | 059481 | |||||
| 7,6 m (25′) | 059473 | 059470 | 059477 | 059482 | 059464 | 059465 | 059466 |
| 10,7 m (35′) | 059478 | 059483 | |||||
| 15,2 m (50′) | 059474 | 059471 | 059479 | 059484 | |||
| 22,8 m (75′) | 059475 | 059472 | 059480 | ||||
Cable options
| Work cables | Control cables | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cable length | Hand clamp | C-style clamp | Ring terminal | Remote pendant | CNC, spade connector, divided voltage | CNC, spade connector, no divided voltage | CNC, D-sub connector, divided voltage | RS-485 Serial comm, unterminated | RS-485 Serial comm, D-sub |
| 7,6 m (25′) | 223254 | 223287 | 223284 | 128650 | 228350 | 023206 | 223048 | 223236 | 223239 |
| 15,2 m (50′) | 223255 | 223288 | 223285 | 128651 | 228351 | 023279 | 123896 | 223237 | 223240 |
| 22,8 m (75′) | 223256 | 223289 | 223286 | 128652 | |||||
Hypertherm cartridges and adapter upgrade
Cartridge adapter
The cartridge torch adapter provides an optional upgrade to convert from the use of standard consumables to the new Hypertherm cartridge consumable platform. The torch adapter allows for conversion to the cartridge platform if you have the following systems and torch types.
|
System |
Torch type |
Adapter part number |
|
Powermax45® XP |
Duramax® Lock hand, machine, and robotic |
|
|
Powermax65® |
Duramax hand, machine, and robotic |
|
|
Powermax85® |
||
|
Powermax105® |
Drag cutting and FineCut® for hand torches
Mechanized and FineCut® for machine torches
Mechanized cartridges can be used on hand torches if a stand-off is desired.
|
Hypertherm cartridges |
|
|
Process |
Cartridge |
|
105 A |
|
|
85 A |
|
|
65 A |
|
|
45 A |
|
|
FineCut mechanized cutting |
|
|
Ohmic ring kit |
(contains 3 #420580 ohmic rings) |
|
Replaces this stack-up |
||||
|
Shield |
Retaining cap |
Nozzle |
Electrode |
Swirl ring |
|
220993 |
220854 or 220953 (Ohmic) |
220990 |
220842 or 220777 |
220994 |
|
220817 |
220816 |
|
||
|
220819 |
220857 |
|||
|
220941 |
|
|||
|
220948 or 220955 |
220930 |
220947 |
||
Max removal and max control gouging
|
Hypertherm cartridges |
|
|
Process |
Cartridge |
|
Max removal gouging 105 A |
|
|
Max removal gouging 45–85 A |
|
|
Max control gouging 105 A |
|
|
Max control gouging 45–85 A |
|
|
Replaces this stack-up |
||||
|
Shield |
Retaining cap |
Nozzle |
Electrode |
Swirl ring |
|
220798 |
220854 |
220991 |
220842 |
220994 |
|
220797 |
220857 |
|||
|
420480 |
220991 |
220994 |
||
|
220797 |
220857 |
|||
Standard consumables
Related upgrades

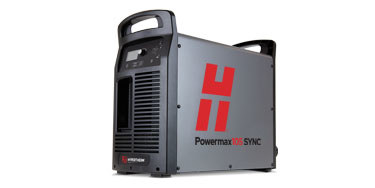

Powermax105 SYNC plasma cutter
Professional-grade 32 mm (1-1/4″) plasma cutter provides automated process set-up and a revolutionary cartridge consumable platform for ease of use and optimized performance.
Read more

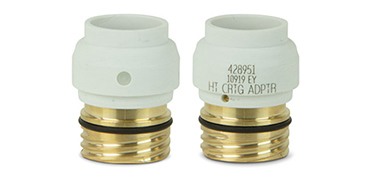

Hypertherm cartridge adapter
The cartridge adapter lets you convert to Hypertherm’s new cartridge consumable platform if you have a Powermax45® XP with a Duramax® Lock torch or a Powermax65®, Powermax85®, or Powermax105® with a Duramax torch.
Read moreRelated products

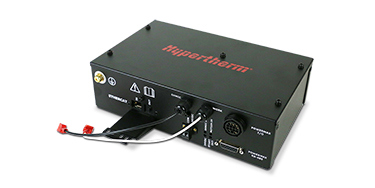

Powermax EtherCAT Interface for EDGE Connect
The Powermax® EtherCAT® Interface is an all-in-one adapter that allows a digital connection between the Powermax equipment and the EDGE® Connect CNC. This allows faster equipment setup, an intuitive operator interface, and access to real-time diagnostics information.
Read more

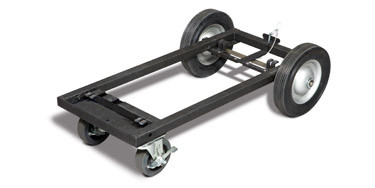

Wheel/gantry mount kits
Hypertherm wheel and gantry kits for added mobility to move Powermax plasma cutting systems.
Read more

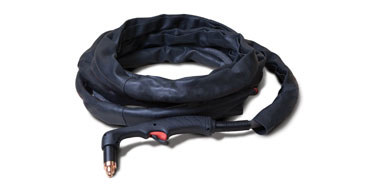

Leather torch sheaths
The Hypertherm leather torch sheath provides additional protection for torch leads against cuts, burn-through and abrasion.
Read more

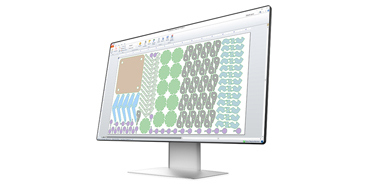

ProNest 2025 LT
ProNest® LT is a material nesting software designed for light industrial, mechanized plasma, waterjet, and oxyfuel cutting in production environments.
Read more

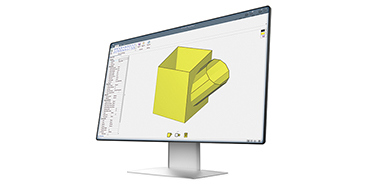

Design2Fab 6
